Discussion Starter #1 (Edited)
Photos are in the process of being recovered for this thread. Sorry for the inconvenience.

At the request of others, I've re-edited the description of the xt350 oem tank installation on the tw200. The original links and those patched into MrGizmow's compendium do not appear to work at present and thus this re-hash.



The bare bones explanation of installing a stock Yamaha xt350 tank (metal oem with 3.17 gallons capacity) on a Yamaha TW200.





1. The front mounts for the xt350 and tw200 are identical and the xt350 tank will use the same rubber donuts that are present in the stock tw200 installation.



2. The xt350 tank probably clears the front fork and handlbebars without being shimmed to the rear or handlebar risers but this depends on how bars are adjusted, condition of front tank mount donuts etc. Note: It will also depend on how the rear mount modification is handled. See below (Item 4).



For my installation I shimmed the tank backwards by placing a thin rubber strip in the front 1/2 of the C shaped mounts to move the tank backwards 2 or 3 mm.

3. I did raise my handlebars aboutr 3/4 inch by using the top half of an extra set up tw200 handlebar clamps (placed under the bars and held in place with longer bolts). I suspected that this was necessary but did not check this to be sure and hence may have added the height unnecessarily.





4. The internally threaded stud that constitutes the rear tank mount on the original tank protrudes vertically and if not modified will hold the xt350 tank up because the rear mount opening for the xt350 tank is some 3/4 inch or more further back. Hence I moved this mount point backwards (distance was something between 3/4 of an inch and 1.25 inch and probably depends on how much you shim the front mounts (determine for your application and do not trust these guesses). The rear mount is moved back by:

a. cutting off the vertical stud of the original rear mount (on the frame of the tw200). This mount is threaded all the way through its length and hence when cut off above the frame where it is welded in place) it still have threads to allow attachment of a bracket that will allow the part that was chopped off to be positioned further back at an appropriate position for the xt350 rear tank mount.

b. I placed a flat washer over the vertical pen so that I could just hacksaw the pen off leaving a bit of a ridge that would help hold my bracket in place (also held down by a bolt and washer on top of the bracket and threaded into the remaining base of the posterior mount pen. See photos.


c. I then fabricated an L shaped bracket the front part of which was bolted to the original base of the rear tank mount, and the rear part of which rested on the frame and a hole of an appropriate size to allow the stub that was removed from the rear mount to be reattached with a bolt from underneath. See photos.

This bracket could be flat stock but I used something more elaborate (a bracket from an old computer printer) which is certainly unnecessarily rigid. This bracket is held in place by a single bolt through the base of the original stud but is substantial enough and has given no hit of movement or loosening in multiple thousands of miles of off road riding to date.

5. I then positioned the tank (using original front mounts and rear mount modified to be slight further back than orig) using same rubber bushing and type of hold down bolt as original tw tank installation.

Edit: Here is a mockup of the original metal piece used to fabricate the posterior bracket (lower left of illustration). Stud removed from original posterior mount was reattached at point A (with bolt from bottom) and hole for attaching bracket to original stud position (with remaining threads and bolt from top) was at site B.





6. I was able to use the xt350 petcock, but I believe it is identical to the tw200 petcock (same part number on bikebandit.com)

7. I did have room for the original plastic shroud to clear the petcock but it is closer to the plastic than the original tw200 position.

8. The tw200 plastics fit but do not have a grommet attachment for the front attachment point (no problem in 2000 + miles of using this configuration).

9. I did use an inline fuel filter because my xt350 tank had some rust, but there was room for it with removal of a a bit of fuel line and a slight tension toward bending it.

10. Even tho my xt350 tank had some rust (I cleaned it somewhat with many rinses of diesel fuel prior to installation), I've had no problems with carb fouling or clogged fuel filters. I did not use kream or other tank treatment techniques.



11. The xt350 tank accepts the same size fuel cap as the older 1987-2001 tw200 tanks. New TW tanks used a fuel cap with a smaller diameter. Hence I was able to find a keyless vintage yamaha cap that fit my xt350 tank and avoided a tight cap problem that was present with both tanks. (see photo). I had a source of these caps but the supply has been exhausted. Here are the two sizes of caps (large = pre 2003; small (post 2002) Ebay occasionally has these cap

s but since they are 2-4 decades old some will need to have a gas

ket fabricated for them to be servicable.

12. My xt350 tank is reported to be 3.17 gallons. The only time I really ran it to need reserve I was at 185 miles and it appeared that I had about 1 gallon left in the tank which would comfortably give me 250 miles range or more total miles if needed.



13. I was able to modify my seat just slightly to accommodate the steeper angle of the xt350 tank. I did this in order to use the original front seat bracket and still retain good seat/tank continuity. I merely had to make the seat able to flex a bit more than originally (by cutting the reinforcement ridges on the bottom of the seat pan where I wanted the flex to occur. To prevent cutting through to the seat cover, I pulled staples in the appropriate places and slid a plastic sheet between the cushion and the cover to prevent damage to the seat cover if I went that far. I did not. I merely cut the ridges, not the overall seat pan layer. See photo. Note: this seemed preferable to shortening the horn of the seat or bonding two seat together as have others. I was able to leave the original rubber seat bushing in place and my seat actually still inserts into the original front seat mount bracket and has given no problem. The only consequence of the more steep angle of the seat horn is a bit of wrinkling of the plastic cover (something covered by my tank bag, but easily correctable by refastening the cover for those who want to do so. Questions are welcomed for anyone finding ambiquities in this redigestion of the former description.




BTW. My tank was probably a 1987 xt350. It was cheap and not in pristine condition. Some of the dents were covered by using the rubber tank pads seen on the following photo.


I have subsequently replaced this old tank with a much cleaner dent free version, but readily point out that the old one served me well for several years before being passed on to another forum rider. Tom


·
Registered
Joined
·
20 Posts
Thanks for that Tom, very informative, a future project laid out for viewing at our leisure. I love the Tdub forums. Thanks to Charles also for making this possible. :)


·
Registered
Joined
·
77 Posts
So how do you like the tank after its all said and done? I'm considering a clarke tank, but I like the XT350 for 3 reasons:



1. Its metal, and thus looks more "factory" 2. It holds enough fuel to make the conversion worth while 3. Its not a "bolt on" deal so not everyone will have it (I like to take the road less traveled).



Your description is great and the pictures help a lot. The only thing I'm a little concerned about is the "L" bracket you have to move the rear tank mount back. Any chance you have a couple other pictures of that piece maybe from the side or other angles? Everything else seems pretty straight forward. Thanks.


·
Registered
Joined
·
77 Posts
Well, I just checked ebay after posting that last reply and WOW, those things are EXPENSIVE!!!! One that was really beat to heck was priced at $50 plus shipping and a NOS one was listed at $499! Another listing claimed retail on the tank is $749! Maybe the clarke route is cheaper after all.



Anyone got an XT350 tank sitting around that they aren't going to use?


·
Registered
Joined
·
50 Posts
Well, I just checked ebay after posting that last reply and WOW, those things are EXPENSIVE!!!! One that was really beat to heck was priced at $50 plus shipping and a NOS one was listed at $499! Another listing claimed retail on the tank is $749! Maybe the clarke route is cheaper after all.



Anyone got an XT350 tank sitting around that they aren't going to use?


Another option for you is to use the Clarke XT350 or XT225 tank. Gets you the extra capacity (4 gallons), a 'unique' look, and only costs around $200 like the tank for the TW. Plus, then you aren't worried about someone shipping a metal tank, rust, etc, etc. Install should be pretty much the same and the stock metal tank, give or take.



trey


·
Registered
Joined
·
1,704 Posts
Discussion Starter #7
Well, I just checked ebay after posting that last reply and WOW, those things are EXPENSIVE!!!! One that was really beat to heck was priced at $50 plus shipping and a NOS one was listed at $499! Another listing claimed retail on the tank is $749! Maybe the clarke route is cheaper after all.



Anyone got an XT350 tank sitting around that they aren't going to use?


I've always considered the option of going to the xt350 thread on advrider in their thumper section to solicit tank availability. There's where the guys who are upgrading and thrashing xt350s hang out. I did find a couple of guys with xt600 tanks on advrider and they didn't want alot of money for their tanks.

The bracket is nothing special, but merely bends downward at the rear to gain support from the frame that is at a lower level than the place where the original rear bracket stud was (and where the bracket is attached). I'll look for other photos to add to the instructions. I bought my tank for $9.99 plus $25 or 30 for shipping so I figure it cost me $40. The most important thing is that the tank is not a rust bucket inside. I'm not into riding wrecks but I've long ago given up on keeping my bike is showroom condition. And my tanks cosmetic deficiencies don't bother me enough to want one of those $499 tanks. Good luck. tom


·
Registered
Joined
·
323 Posts
I picked up what I thought was an XT350 tank but it seems like it might be an XT600 tank as the mounts frame are too narrow between them to fit on my TW200.



It seems like if I forced them apart just .25" the tank would fit.



Has anyone had any luck bending tank metal supports to get a tank to fit on the TW?


·
Registered
Joined
·
1,704 Posts
Discussion Starter #9
I picked up what I thought was an XT350 tank but it seems like it might be an XT600 tank as the mounts frame are too narrow between them to fit on my TW200.



It seems like if I forced them apart just .25" the tank would fit.



Has anyone had any luck bending tank metal supports to get a tank to fit on the TW?


If its as little as 1/4" I'd be tempted to cut that much off (grind) of the front mount pegs and go for it.

There may be some flex but I would not want the front mount pegs vibrating against the tank wall all the time. JMHO. Tom

BTW, The xt350 does not have the front grommets but the xt600 does (at least the version that MrGizmow had originally installed. Check out the photos from the various models of bikes - sometimes even the graphics and decals help determine year and model. I found a decal site that had almost every year of yamaha tank illustrated. Tom


·
Registered
Joined
·
1,704 Posts
Discussion Starter #10
So how do you like the tank after its all said and done? I'm considering a clarke tank, but I like the XT350 for 3 reasons:



1. Its metal, and thus looks more "factory" 2. It holds enough fuel to make the conversion worth while 3. Its not a "bolt on" deal so not everyone will have it (I like to take the road less traveled).



Your description is great and the pictures help a lot. The only thing I'm a little concerned about is the "L" bracket you have to move the rear tank mount back. Any chance you have a couple other pictures of that piece maybe from the side or other angles? Everything else seems pretty straight forward. Thanks.


Yep, I have edited the description above to include a lateral view of a mockup of the L shaped bracket. I just used a bench grinder and hacksaw to get the bracket to the shape and size I needed. And of course a drill press to drill the appropriate holes at sites A and B. It is very stable and has not moved in several 1000 miles of relatively rough travel. Tom


·
Registered
Joined
·
1,345 Posts

·
Registered
Joined
·
2,497 Posts
Knobby, thanks for the excellent pictorial of the tank install. I'm sure it will be helpful to anyone trying to do the same.



Nicely done.



Jb


·
Registered
Joined
·
2,223 Posts
Thank you for the wonderful pictures and tutorial! You did a great job on your seat/tank install. It looks very nice.


·
Registered
Joined
·
3,386 Posts
here's a couple of reasonable ones listed on the bay:



1. would look good on an '89 black widow, is also a cal tank. http://www.ebay.com/itm/1985-Yamaha-XT350-gas-fuel-petrol-tank-cell-85-XT-350-/370819860756?pt=Motorcycles_Parts_Accessories&fits=Model:XT350&hash=item5656960914&vxp=mtr



2. more internal rust. http://www.ebay.com/itm/1986-YAMAHA-XT350-XT-350-FUEL-TANK-/151038333008?pt=Motorcycles_Parts_Accessories&hash=item232a961050&vxp=mtr



3. cleanest and most expensive, but still cheaper than a clarke tank. http://www.ebay.com/itm/Fuel-Tank-Petrol-tank-XT-350-YAMAHA-/140979806203?pt=UK_Motorcycle_Parts_13&hash=item20d30d1ffb&vxp=mtr



4. this one is a project.... it's a cali tank that has been listed for over a year, when i offered him $50 for it. http://www.ebay.com/itm/GAS-FUEL-PETROL-TANK-YAMAHA-1999-XT350-99-XT-350/140678709840?rt=nc&_trksid=p2047675.m1851&_trkparms=aid=222002&algo=SIC.FIT&ao=1&asc=163&meid=7992423957049233033&pid=100005&prg=1088&rk=1&sd=151038333008&



i ended up wimping out an getting an xt225, less capacity, but still adds 1/2 gallon, easy fit and looks great.


·
Registered
Joined
·
250 Posts

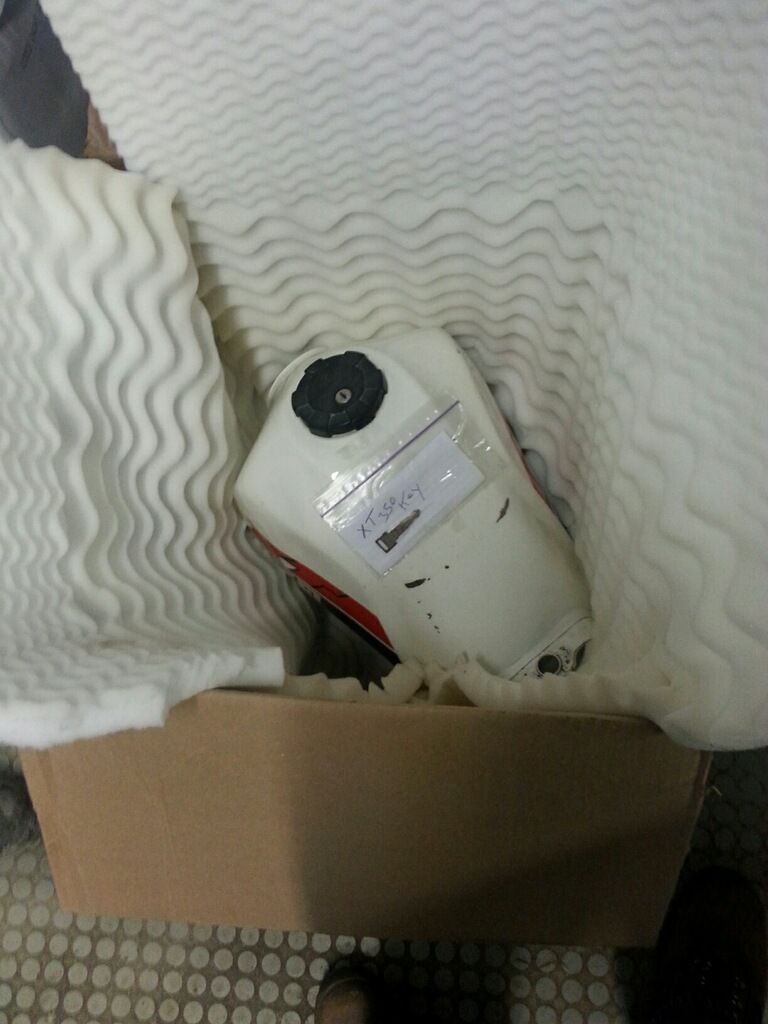

Looks like I finally get to put this thread to use! My tank is packed up and headed to the UPS store, hope to have it here by the weekend. I plan on stripping it and then repainting. Can't decide what color to go with: white, black, or silver. I'm wanting to eventually change my plastics over to white or black. Choices, choices, choices....
