Discussion Starter #1

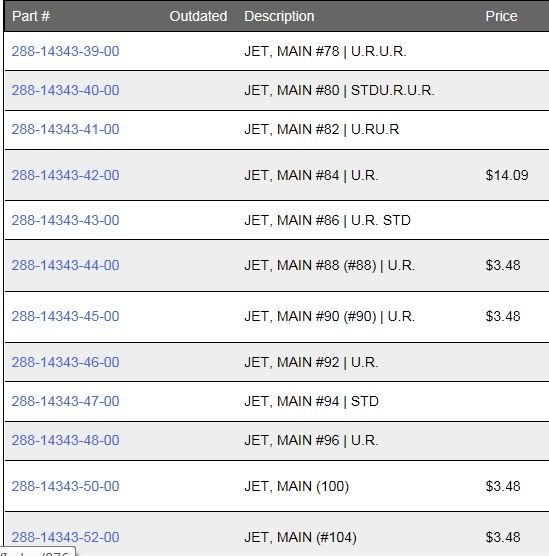

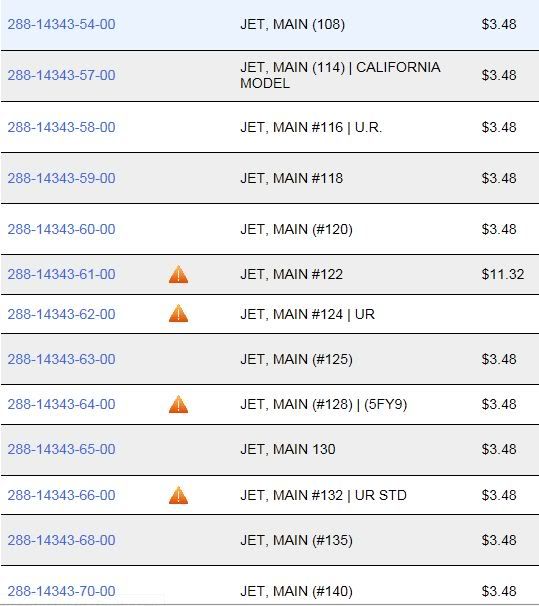

TW main jets are numbered 288-14343-xx-00







Some TW main jet numbers are superceded by 288-14355-xx-00 numbers



Some 288-14343-xx-00 numbers are superceded by or supercede 288-14329-xx-00 numbers

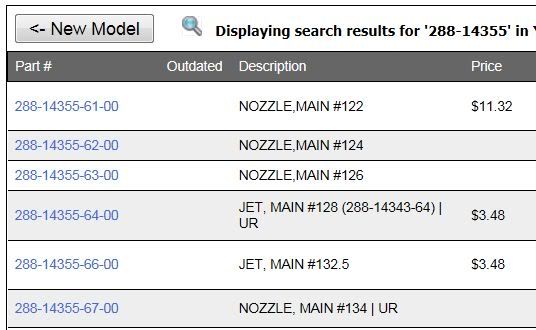

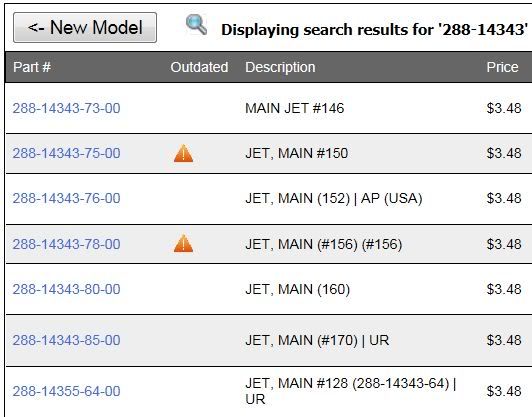

I think we just may have more choices in main jets than one can shake a stick at. Look closely and you can find the #126 and #132.5 main jets that have caused confusion are from the 14355 main jet family, not the 14343 main jet family. Both have worked well for people with the late carbs. Note that the #128 from the 14343 family has been superceded by the #128 from the 14355 family (3rd picture).


·
Registered
Joined
·
7,369 Posts
It would also be interesting to verify some of the Mikuni stuff as well. With a set of numbered orifice drills as a gauge you could probably determine whether or not those 112.5's were in fact the same as 112's for example.


·
Banned
Joined
·
10,664 Posts
Discussion Starter #3
It would also be interesting to verify some of the Mikuni stuff as well. With a set of numbered orifice drills as a gauge you could probably determine whether or not those 112.5's were in fact the same as 112's for example.
That would be good info to have.


·
Registered
Joined
·
540 Posts
It would also be interesting to verify some of the Mikuni stuff as well. With a set of numbered orifice drills as a gauge you could probably determine whether or not those 112.5's were in fact the same as 112's for example.




That would be good info to have.


I am working on this, I have about a dozon yamaha jet measured in mm, dec, drill size all in a spread sheet. If someone has abunch of mikuni and or keihin jets I would be happy to addd them
